Lubrication Accessories
The parts that make a centralised oil or grease circuit monitorable and serviceable. A pressure switch confirms line pressure to the pump timer or machine PLC, a gauge is the fastest way to tell a blocked point from a failed pump, and sight-type indicators show reservoir level from outside the cabinet. Nylon and copper tube run the mains and branches, cut square with matched cutters (a burr is the most common cause of a blocked point), and grease guns and the motorised barrel unit fill reservoirs without opening the tank to workshop dust.
What the range covers
Oil
Pressure switch
5 / 10 kgf/cm²
Confirms line pressure to the pump timer or machine PLC. Order with the pump. Retrofitting means opening the pump head.
Oil

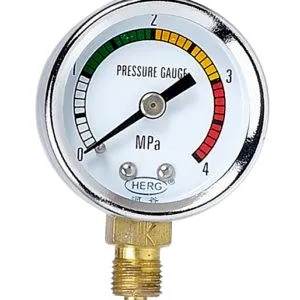

Pressure gauge
0 – 4 MPa
Panel or line mounted. The fastest way to tell a blocked point from a failed pump.
Oil
Oil level indicator
Sight type
Reservoir level at a glance from outside the cabinet, with max and min marks.
Oil

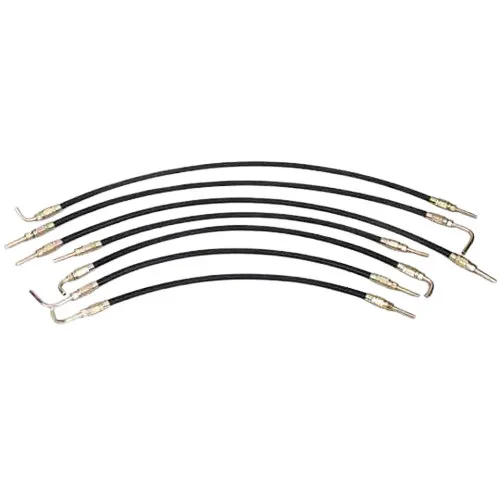

Pressure hose assembly
Made to length
Braided hose with fittings pressed both ends, for movement between a fixed pump and a travelling point.
Oil · Grease

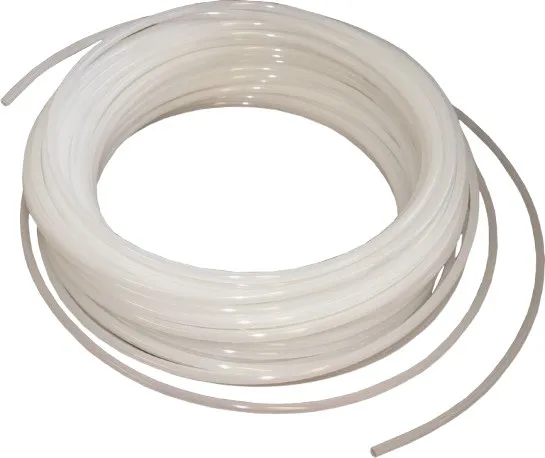

Nylon tube
Ø4 · Ø6 · Ø8
Coil lengths. The default main and branch line where there is no heat and no abrasion.
Oil · Grease

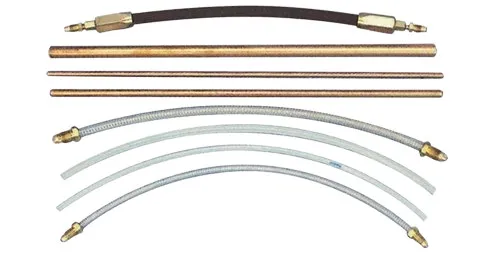

Copper tube assemblies
Ø4 · Ø6
Pre-formed with fittings both ends. Use where the run is hot, tight or exposed to chip.
Oil · Grease

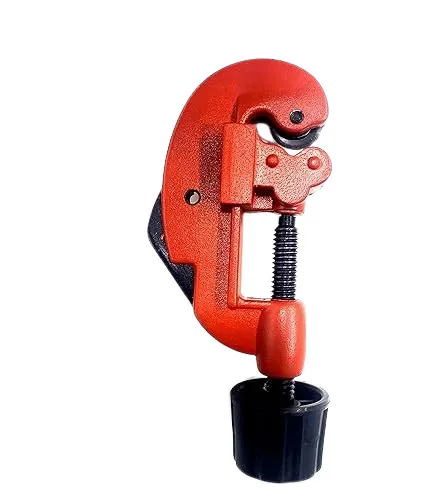

Copper tube cutter
Ratchet type
Square cut without swarf inside the tube: a burr is the most common cause of a blocked point.
Oil · Grease

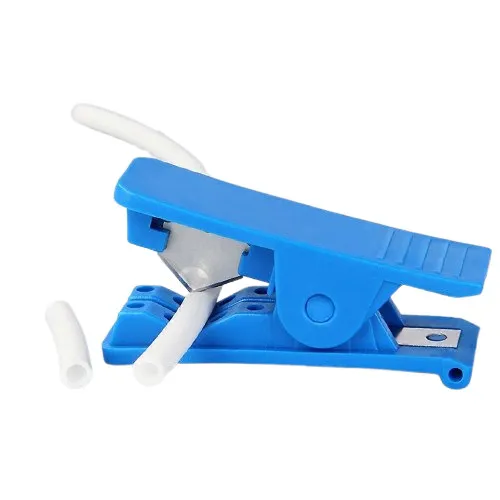

Nylon tube cutter
Shear type
Clean square cut on Ø4 to Ø8 nylon tube.
Oil
Brush lubrication assembly
Single / multi
Feeds oil onto chains, racks and open gears through a bristle head instead of a nozzle.
Oil
Brush heads and adapters
Assorted
Replacement bristle heads with M8×1 and M10×1 adapters.
Grease

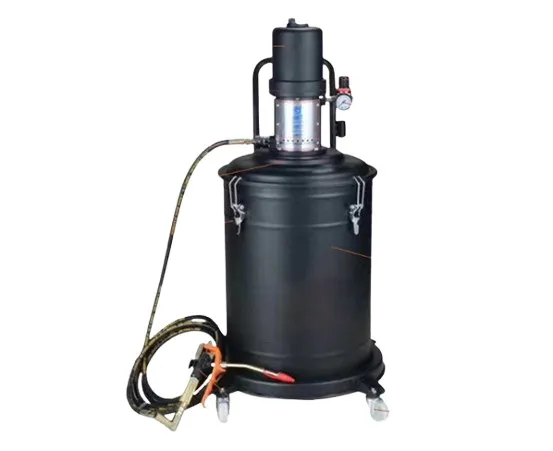

Barrel grease replenish unit
Motorised
Fills pump reservoirs from a standard grease barrel without opening the tank to workshop dust.
Grease

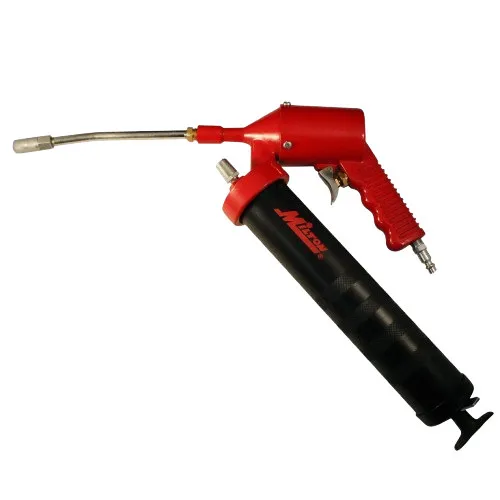

Pneumatic grease gun
Air operated
Shop-air gun for manual top-up points and for priming a new circuit before first run.
Grease

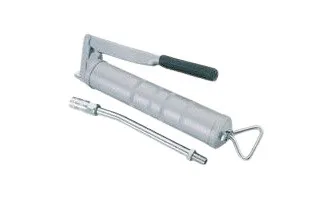

Manual grease gun
Lever type
For filling PJ and AP reservoirs and for points deliberately left off the circuit.
Grease

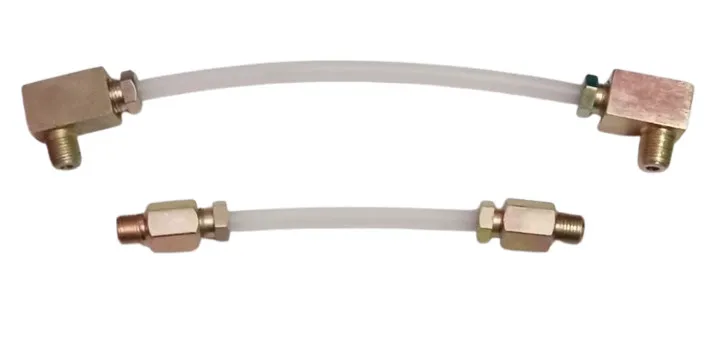

Copper hose assemblies
Made to length
Short flexible links between a fixed distributor and a moving point.
Grease

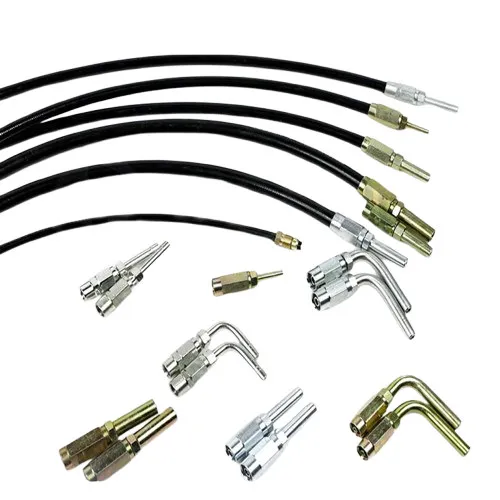

High pressure hose sets
Assorted lengths
Rated for progressive circuits; supplied with couplers, elbows and extensions.
Drawings, sizes and the full grids are in the printed catalogues: Oil Lubrication Catalogue (PDF) · Grease Lubrication Catalogue (PDF)
