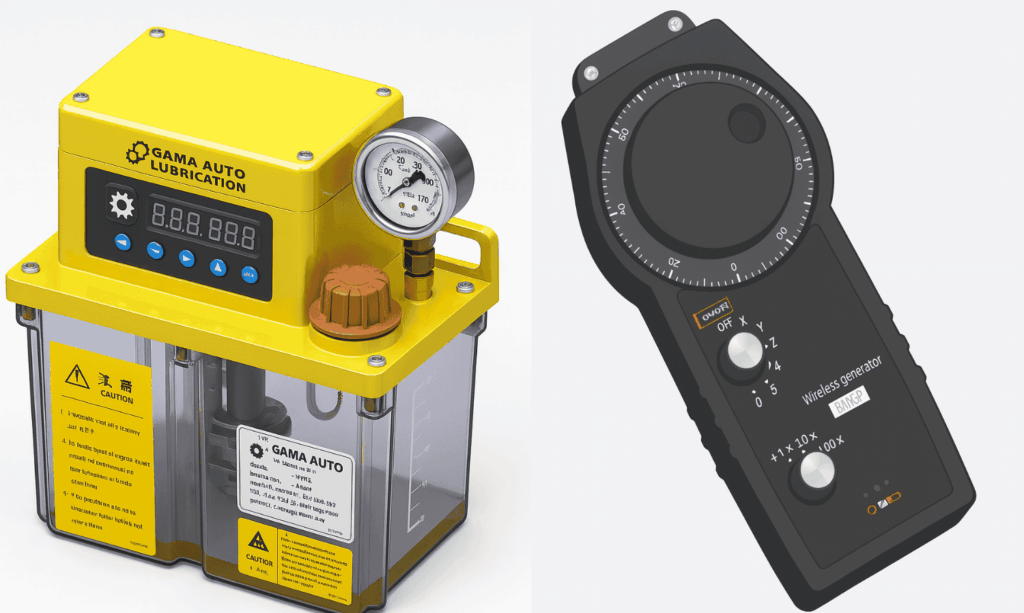

CNC Lubrication Systems & Wireless MPG Controls
Pumps, distributors and 5-axis wireless handwheels. Every part number and rating on the page.
No code? Quote in 1 business dayWhatsApp a photo of the nameplate →
Most asked for

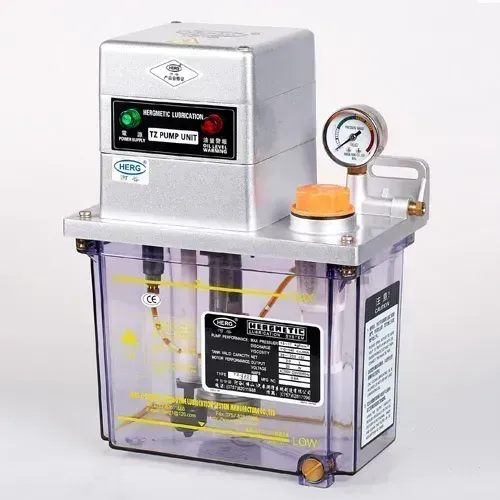

TZ Type Oil Lubrication Pump
Rated Pressure
15 kgf/cm² (1.5 MPa)
Max Pressure
25 kgf/cm² (2.5 MPa)
Viscosity
30 – 1000 cst
Volumetric Efficiency
≥ 75%
25
126
5
30 MPa
Start from what the machine needs
All products →

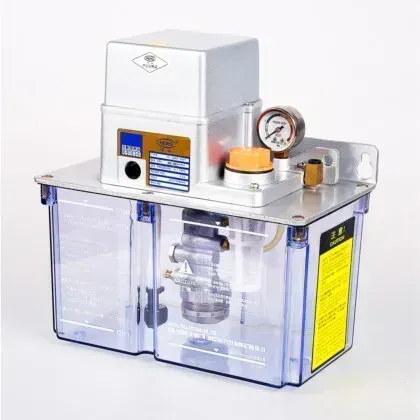

Oil pumpsContinuous oil deliveryMotor-driven gear pumps with level switch, timer options and pressure take-off.HL · TZ · NKHY · BM · MTA-150

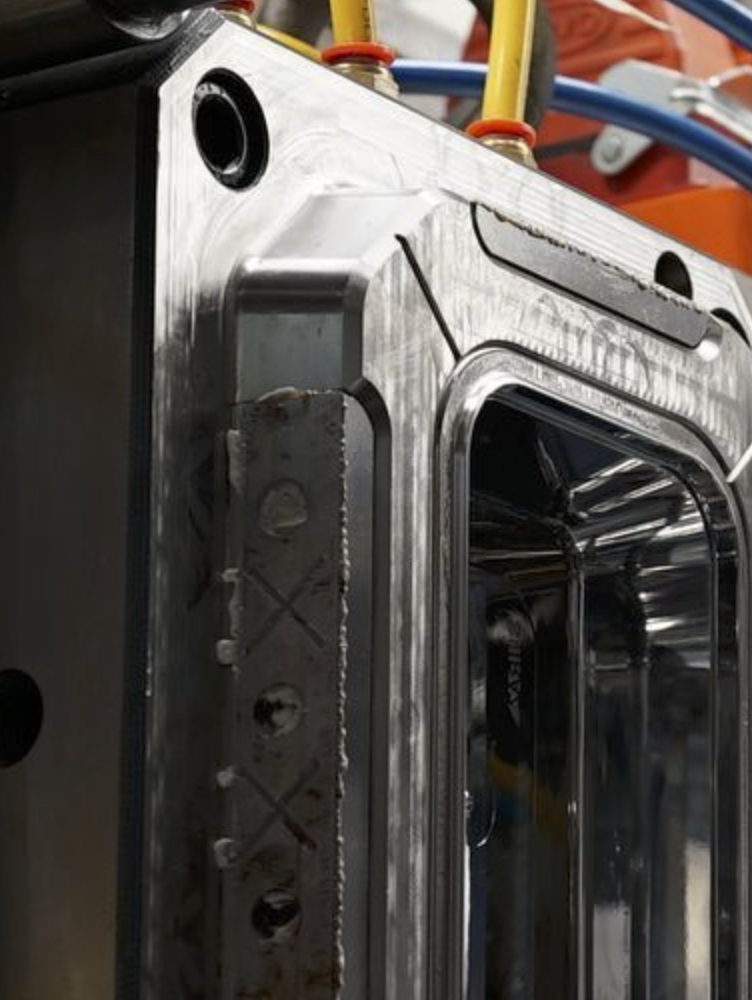

Grease pumpsHeavy-duty grease35 kgf/cm² output for platens, tie bars and progressive block systems.GM · ZD · ZJ · PJ · NKGH · AP

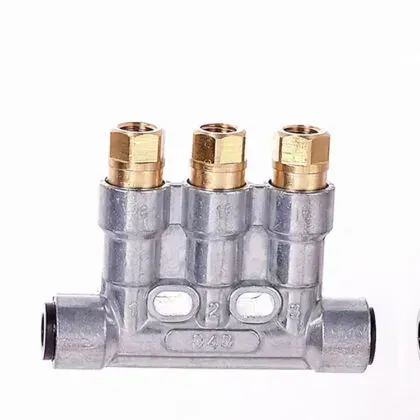

DistributorsMetered to each pointVolumetric, inspecting, progressive block and resist-type proportioning.34 · 35 · RH3 · SD2 · TCJ/TCZ · RH-2 · VK · TK · DK · U-Shaped · AD

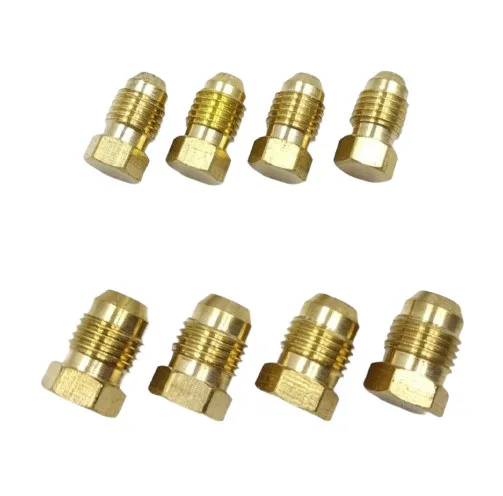

Fittings & AccessoriesTube, connectors and gaugesThe plumbing between the pump and the point: fittings, hose and adaptors.Fittings · Lubrication
Wireless control

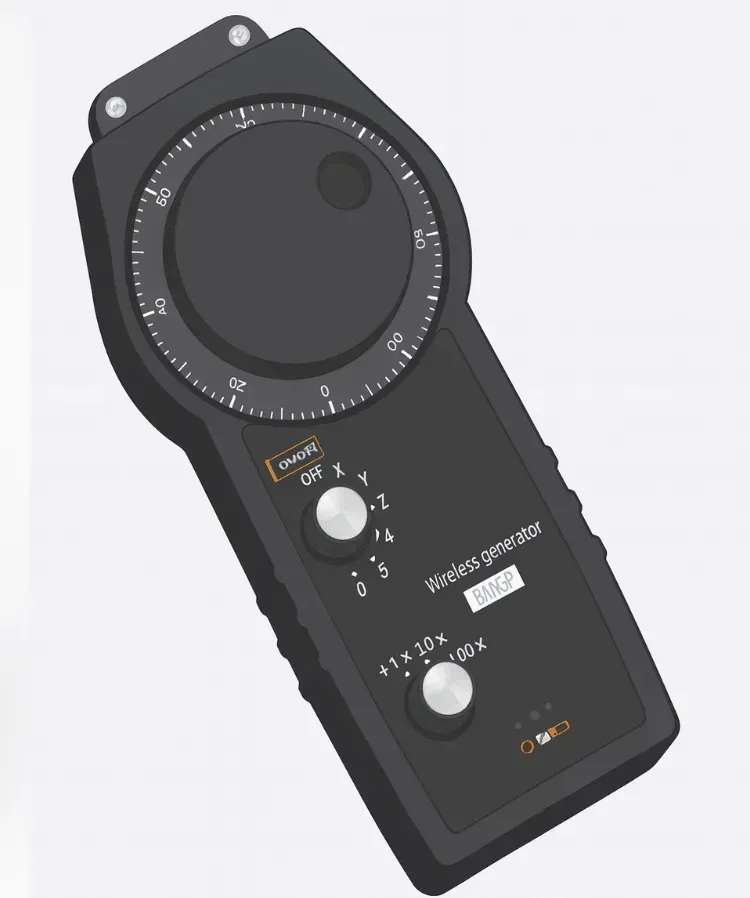

5-axis wireless MPG
50 m range, no cable, 1-year warranty. Fanuc, Siemens, Mitsubishi, Fagor, Heidenhain.
MPG →
The whole range at a glance
Showing 6 of 25FamilyTypeKey ratingCapacity / outletsManual
HLHL Type Oil Lubrication Pump15 kgf/cm²2 L or 4 L (metal custom-made to order)N/ATZTZ Type Oil Lubrication Pump15 kgf/cm² (1.5 MPa)2L or 4L (metal on request)PDF ↓NKHYNKHY / PH Hand Type Oil Pump15 / 25 kgf/cm²8 or 16 cc/strokeN/ABMBM Series Cycloidal Pump5.0 kgf/cm²1.2 – 7.5 L/min, by model and speedN/AMTA-150MTA-150 Thin Oil Lubrication PumpOn requestOn requestN/AGMGM Type Grease Lubrication Pump3.5 MPa (35 kgf/cm²)2L or 4LPDF ↓Send your machine model and lube points. We reply with a part list.
Photograph the nameplate of the pump you are replacing if it is easier. Quotes go out within 1 business day.
