GM Type Grease Lubrication Pump
Also sold as the GM Type Motor-Driven Grease Lubrication Pump
The GM Type Motor-Driven Grease Lubrication Pump is engineered for heavy-duty automatic grease lubrication applications. Motor-driven for consistent and reliable operation, it provides continuous metered grease delivery to all machine points from a 2L or 4L reservoir. It pairs with 35-type pressurised volume distributors, which raise system pressure to 35 kgf/cm² for complete grease lubrication, with a pressure switch action pressure of 30 kgf/cm² for that configuration. Equipped with a 24VDC grease level switch and pressure switch for system monitoring, it integrates with PLC or machine control systems via standard terminal connections.
How it works
A special alloy-steel gear set gives stable output pressure and low noise at 90 W, nominal 3.5 MPa and maximum 5.0 MPa. That is enough to cycle a 35 type pressure volume distributor or a progressive distributor, feeding each point in dose or in sequence.

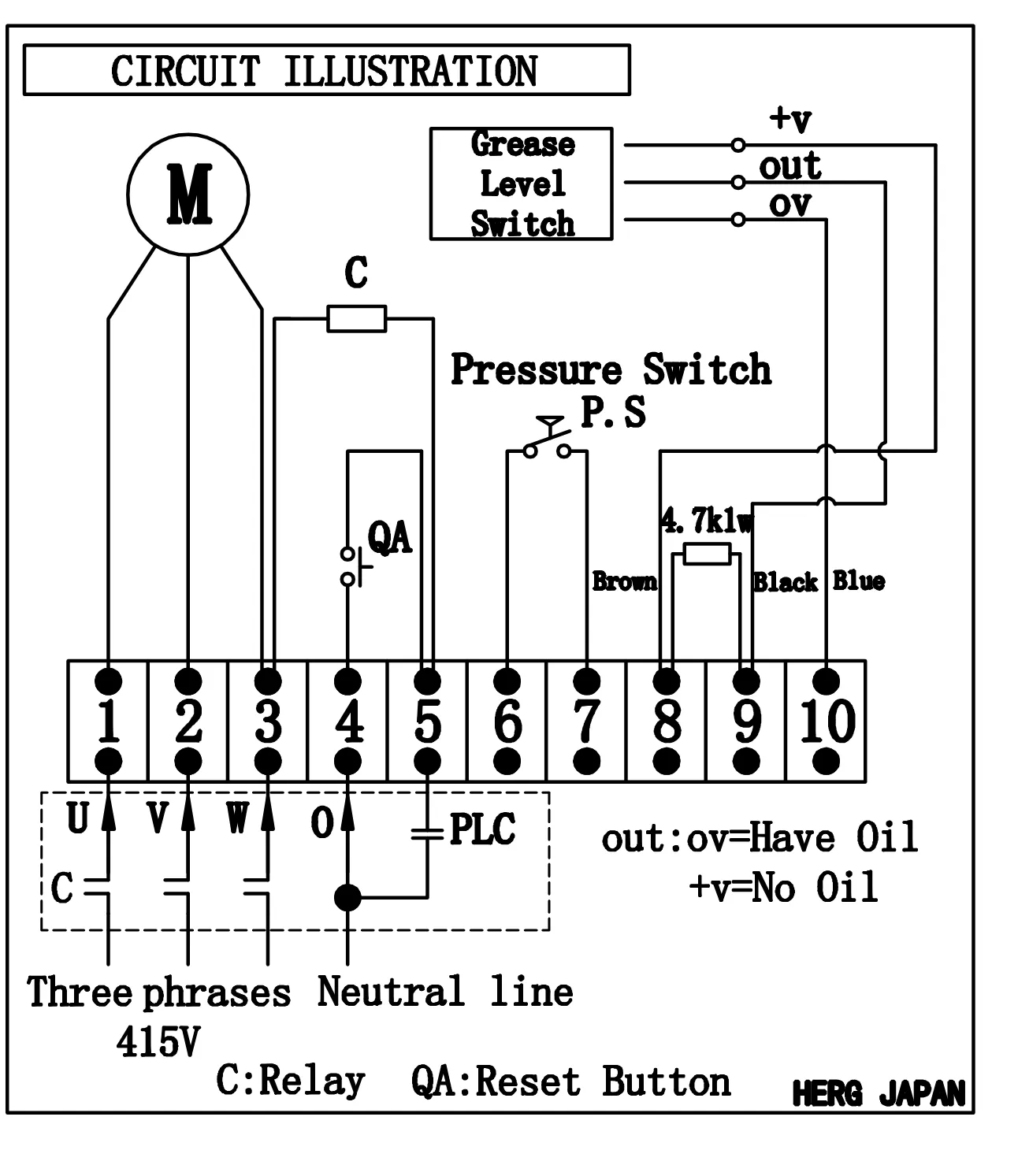

A grease level sensor detects inadequate grease and alarms without external wiring. A point-action switch lubricates the machine at any moment between cycles. With a pressure switch fitted the pump provides a pressure signal for automatic control from the main unit; with the automatic pressure take-off device fitted it forms a complete moderate-pressure circuit with the 35 type distributor.
Specifications
Model matrix by order code
The NK-3 digital display timer is available on the 4 L lubrication pump only.
Dimensions

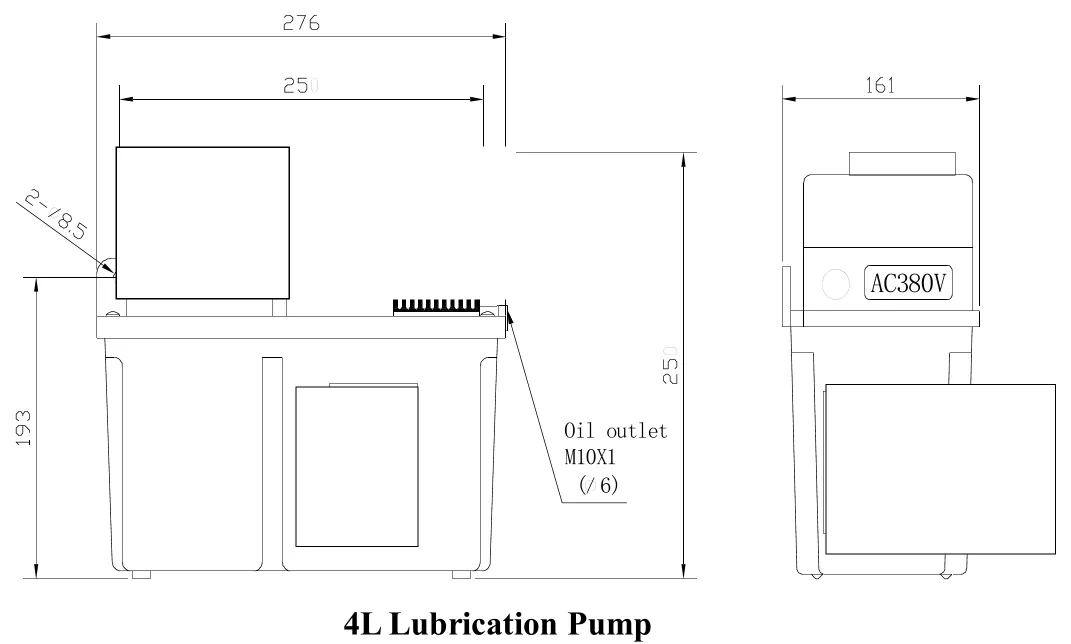

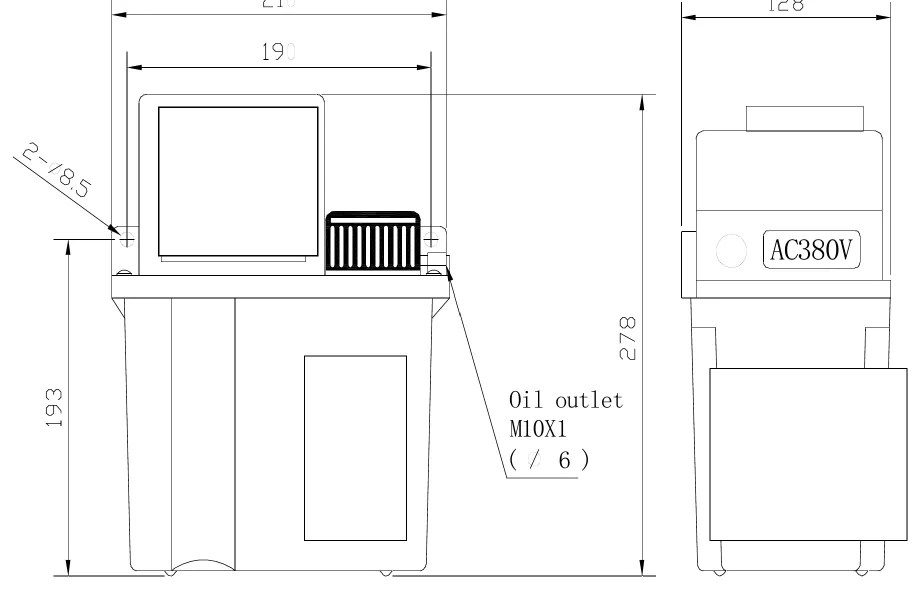

Dimensions in millimetres. Confirm critical dimensions with us before machining a mounting.
How to read the order code
- Discharge capacity per minute
- 2 = 100–200 cc · 3 = 200–300 cc · 4 = 300–400 cc
- Number of motor poles
- 2 = 2P
- Timer module
- 0 = without dual-timer module · 1 = built-in dual-timer module · 3 = NK-3 with digital display (4 L only)
- Motor type
- 1 = single-phase 100 V · 2 = single-phase 220 V · 3 = three-phase 200 V · 4 = three-phase 380 V
- Reservoir volume
- 2 = 2 L · 4 = 4 L
- Pressure switch action pressure
- 00 = without pressure switch · 30 = 30 kgf/cm²
- Pressure take-off mechanism
- X = built-in, for dosing distributors · T = without, for resist-type
- Suffixes
- S = with capacitance-type level sensor (blank = without level sensor)
Before you order
- Three-phase 380 V. Confirm the supply at the machine before ordering.
- X and T builds are not interchangeable: X for dosing distributors, T for resist-type.
- NLGI 00# / 000# grease only.
Warranty
One year against manufacturing defect from date of invoice.
