SD2 Type Progressive Grease Distributor

Name: SD2 Type Progressive Grease Distributor
Brand: AMAG CNC Technology

Also sold as the SD Block-Type Progressive Distributor

Pick the code on your nameplate

SD1 SeriesSD2 SeriesSD3 Series

Compact blocks, discharge 0.08–0.24 ml/cyc per single outlet; assembly length A 73.3–148.7 mm, hole centres B 59.3–134.7 mm over 3–8 blocks

WhatsApp for a pricewe will name the code Datasheet PDF ↓Photo of the nameplate is enough; send it with the chat.No part in hand? Tell us the machine, the number of lube points and the interval instead and we will name it.

The SD Series Block-Type Progressive Grease Distributor is the modular progressive grease distributor in the range, available in three series (SD1, SD2, SD3) to suit different flow and pressure requirements. Optional mechanical indicator pins and electric micro-switch feedback allow integration with PLC-based control systems.

How it works

Pressured grease from the pump enters the inlet and reaches the right side of piston I, which shifts left and strokes grease out of outlet 1. The grease then reaches piston II, which shifts and discharges outlet 2, then piston III and outlet 3; the pressure then returns to the left side of piston I and outlets 4, 5 and 6 discharge in turn. The cycle repeats for as long as grease is supplied.

Because each piston can only move after its neighbour has completed its stroke, the assembly cannot skip a point. Stop the supply and every piston stops where it is; restore it and the sequence resumes from the same point.

An assembly is a start block and an end block plus three to ten middle wafers, held together with tie rods. Middle wafers are single outlet (S) or double outlet (T), and every block has a built-in check valve.

Piston I strokes right to left, outlet 1 discharges

Piston II strokes right to left, outlet 2 discharges

Piston III strokes right to left, outlet 3 discharges

Return stroke: piston I strokes left to right, outlet 4 discharges

Return stroke: piston II strokes left to right, outlet 5 discharges

Return stroke: piston III strokes left to right, outlet 6 discharges

Specifications

Max Working Pressure25 MPa

Min Starting Pressure1.4 MPa

Lube Points per Distributor1 – 20

Block Assembly3 – 10 blocks

Optimum Tube (SD2)Ø6mm, length 1.5 – 4.5m

SD2 Inlet PortRc1/8

Model matrix by order code

CodeConfiguration

SD1 SeriesCompact blocks, discharge 0.08–0.24 ml/cyc per single outlet; assembly length A 73.3–148.7 mm, hole centres B 59.3–134.7 mm over 3–8 blocks

SD2 SeriesMedium blocks, discharge 0.16–0.40 ml/cyc per single outlet; assembly length A 103.4–247.6 mm, hole centres B 89.4–233.6 mm over 3–10 blocks

SD3 SeriesLarge blocks, discharge 0.40–2.40 ml/cyc per double outlet; assembly length A 142.5–340.4 mm, hole centres B 129.1–330.7 mm over 3–10 blocks

A is the overall assembly length and B the distance between the outer fixing-hole centres, both shown on the drawings below. Both are theoretical values for reference only. Cumulative assembly deviation applies. Measure the built assembly before drilling a mounting plate.

Dimensions

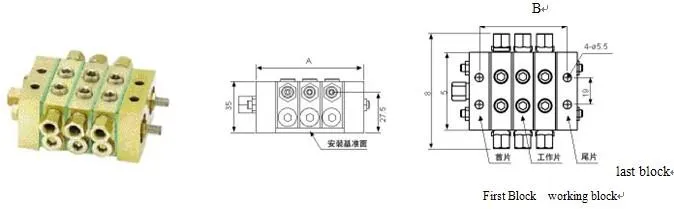

SD1: configuration, installation and main components. The Chinese callout under the view carrying A marks the mounting datum surface.

SD2: configuration, installation and main components. The Chinese callout under the view carrying A marks the mounting datum surface.

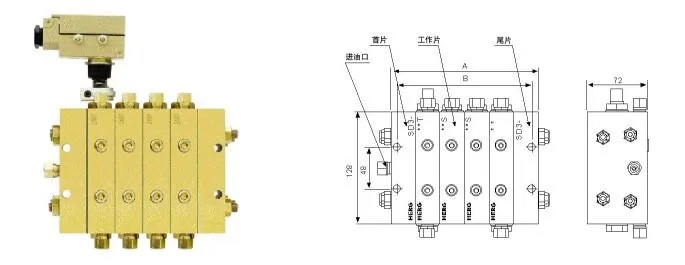

SD3: configuration, installation and main components. Its callouts are Chinese only: far left is the oil inlet port, and the three across the top mark the first, working and last blocks.

Dimensions in millimetres. Confirm critical dimensions with us before machining a mounting.

How to read the order code

SD2-40JTSD2 series block · 0.40 ml discharge per outlet per cycle · with mechanical circulating indicator pin · double outlet.

Series: SD1 · SD2 · SD3
Discharge volume: SD1: 08 · 16 · 24; SD2: 16 · 20 · 24 · 32 · 40 · 48 · 56; SD3: 40 · 80 · 120 · 160 · 200 · 240
Feedback indicator: Blank = without · J = with mechanical circulating indicator pin · M = with electric circulating micro-switch indicator pin
Outlet configuration: S = single outlet · T = double outlet
Outlet side: R = single outlet on the right side · L = single outlet on the left side

Before you order

Never plug an outlet on a double-outlet block. It will stop the distributor working normally and damage it.
One blocked point stops the whole assembly and raises pressure until the pump's safety valve opens. Fit the safety valve and watch it.
