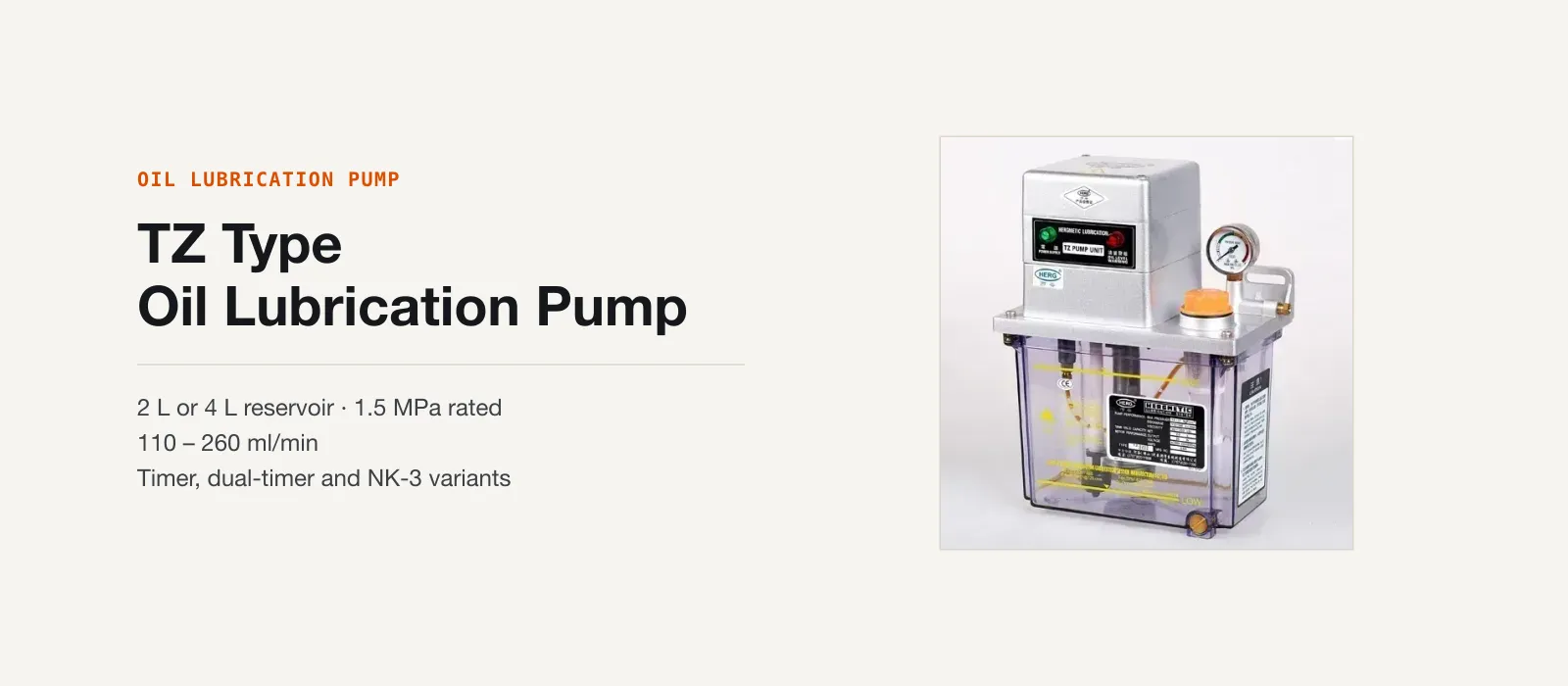

Name: TZ Type Oil Lubrication Pump
Brand: AMAG CNC Technology

The TZ Type Motor-Driven Lubrication Pump is the general-purpose motor-driven oil pump in the range, available on single-phase and three-phase supply. Supplied in 2L and 4L high-strength plastic reservoirs (metal reservoir custom-made on request), with three timer configurations: no timer, built-in dual-timer module, or NK-3 digital display with press buttons for precise interval control.

How it works

A special alloy-steel gear set draws oil from the reservoir and delivers it to the main line at 15 kgf/cm² rated, 25 kgf/cm² maximum, with volumetric efficiency of 75% or better. Self-absorbing performance is good enough that the pump can sit above the oil level.

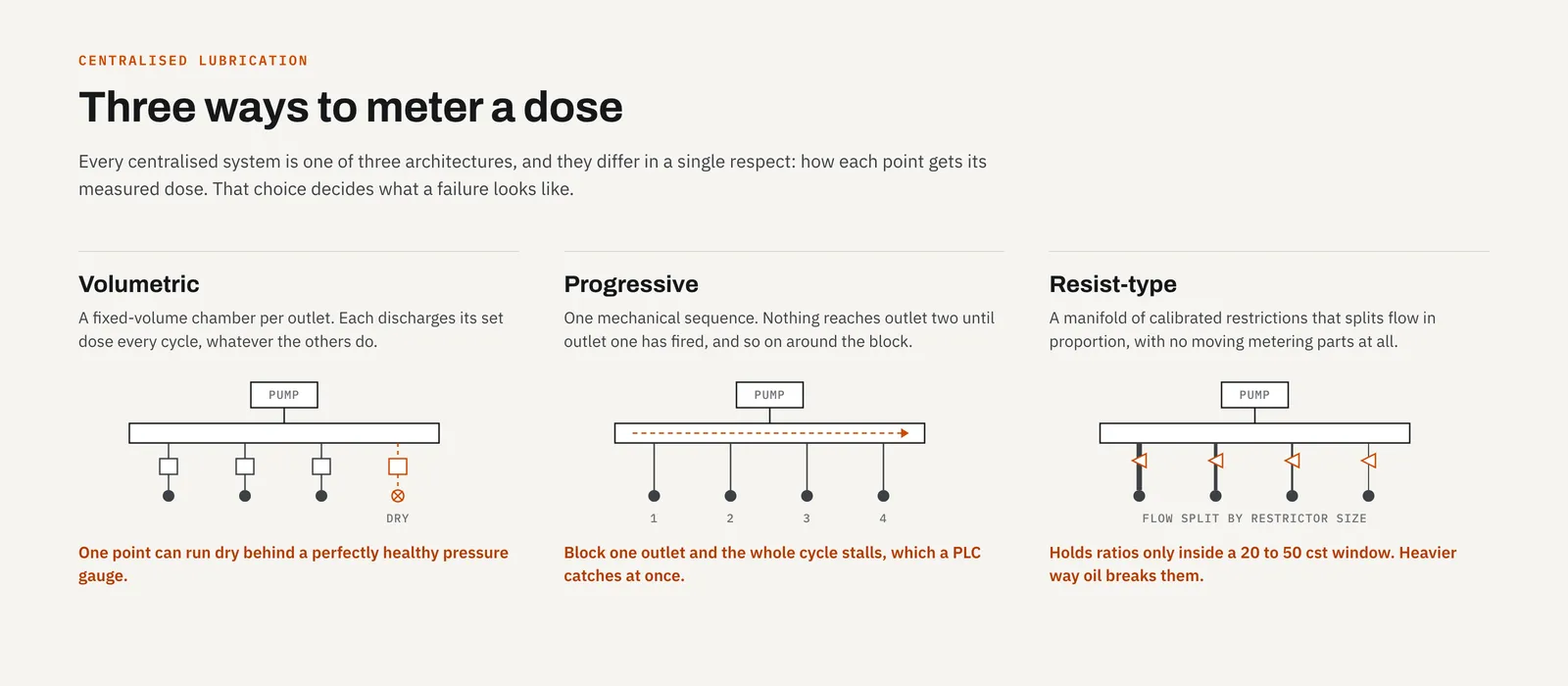

The build decides the circuit. With the pressure take-off mechanism the pump cycles positive-displacement volumetric distributors, delivering a dosed volume to each point. Without it, the pump feeds resist-type distributors, delivering oil to each point in proportion.

A level switch is fitted as standard; a pressure switch is available. Fitted with both, the pump detects system pressure and oil level and integrates intermittence, operation and alarm functions automatically, on its own timer module or from the machine's PLC.

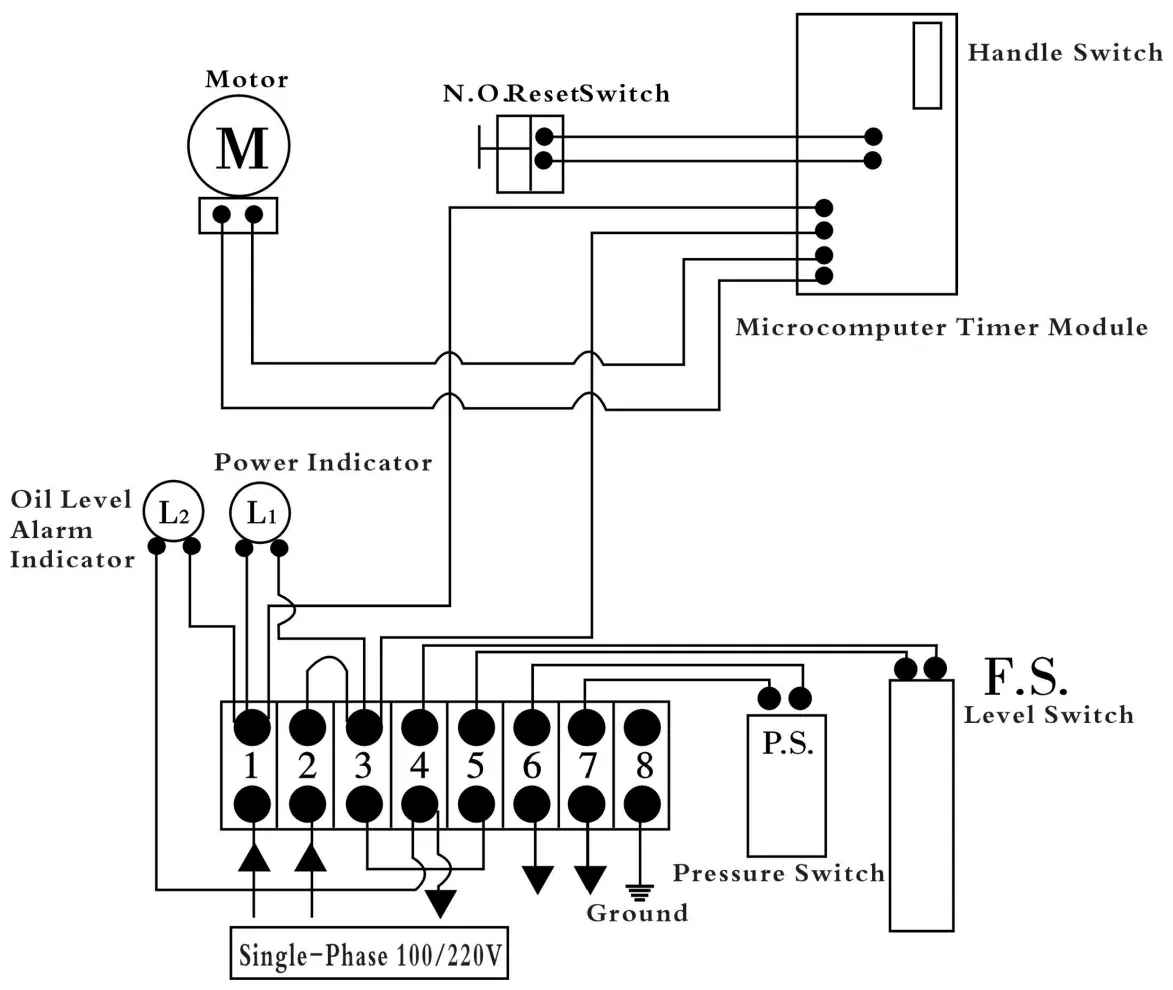

Control wiring: motor, timer module, level switch and pressure switch

Specifications

Reservoir Capacity2L or 4L (metal on request)

Rated Pressure15 kgf/cm² (1.5 MPa)

Max Pressure25 kgf/cm² (2.5 MPa)

Discharge Capacity (Standard flow)110 ml/min (50Hz) / 130 ml/min (60Hz)

Discharge Capacity (High flow)220 ml/min (50Hz) / 260 ml/min (60Hz)

Viscosity30 – 1000 cst

Volumetric Efficiency≥ 75%

Motor Power25W

Power SupplySingle-phase 100V / 220V · Three-phase 200V / 380V

Rated Speed2800 rpm (50Hz) / 3360 rpm (60Hz)

Current0.35 – 0.8A

Dimensions (2L)218 × 296.5 × 138 mm

Dimensions (4L)281 × 255.5 × 161.5 mm

Oil OutletM10×1 thread (for Ø6mm tube)

Mounting HolesØ15mm, R4.25 corner relief

Level SwitchStandard

Pressure SwitchOptional (5 or 10 kgf/cm²)

NK-3 Timer RangeACT 1 – 999 s · INT 1 – 999 min (NK-3 models)

NK-3 Relay OutputControl AC250V 5A · Failure AC250V 0.5A

Model matrix by order code

Reservoir

Every code in the table below takes one of these, appended to the code when you order.

-2: 2 L
-4: 4 L

CodeConfiguration

TZ-2202Standard flow, no timer, 200 V at 110 ml/min

TZ-2211Standard flow, built-in microcomputer timer, 100 V

TZ-2212Standard flow, built-in microcomputer timer

TZ-2231Standard flow, NK-3 digital display timer, 100 V

TZ-2232Standard flow, NK-3 digital display timer

TZ-3202High flow, no timer, 200 V at 220 ml/min

TZ-3211High flow, built-in microcomputer timer, 100 V

TZ-3212High flow, built-in microcomputer timer

TZ-3231High flow, NK-3 digital display timer, 100 V

TZ-3232High flow, NK-3 digital display timer

TZ-2211 · TZ-2212 · TZ-3211 · TZ-3212 have a built-in microcomputer for free setting of action and intermittent period. TZ-2231 · TZ-2232 · TZ-3231 · TZ-3232 add a digital display for simple time setting.

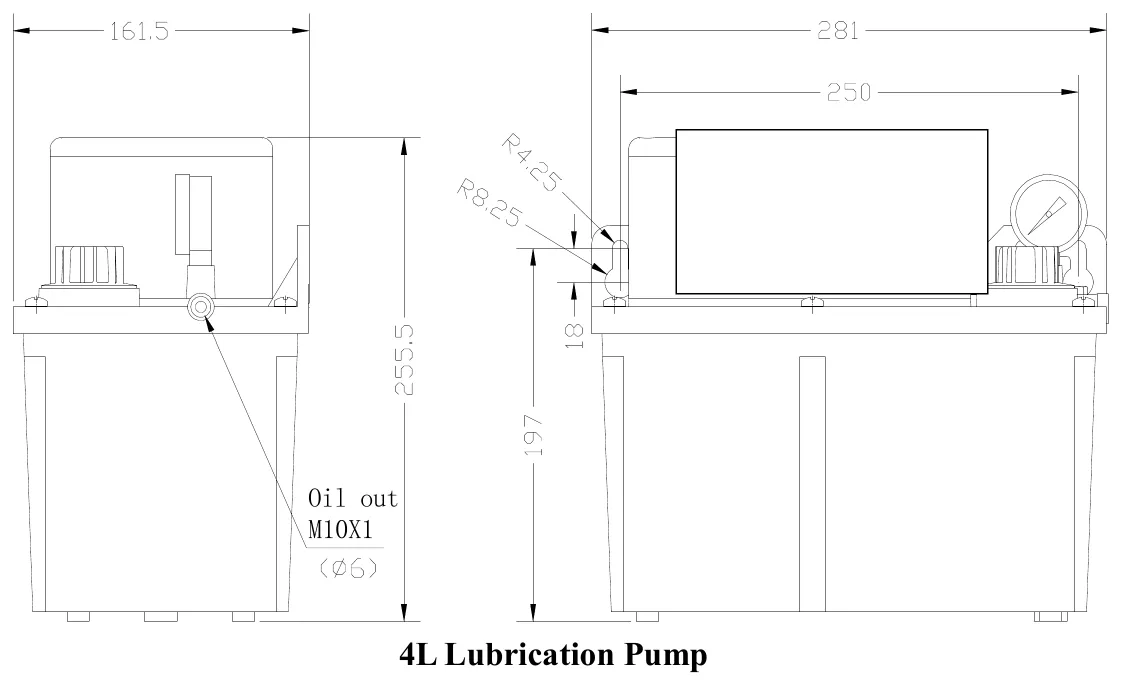

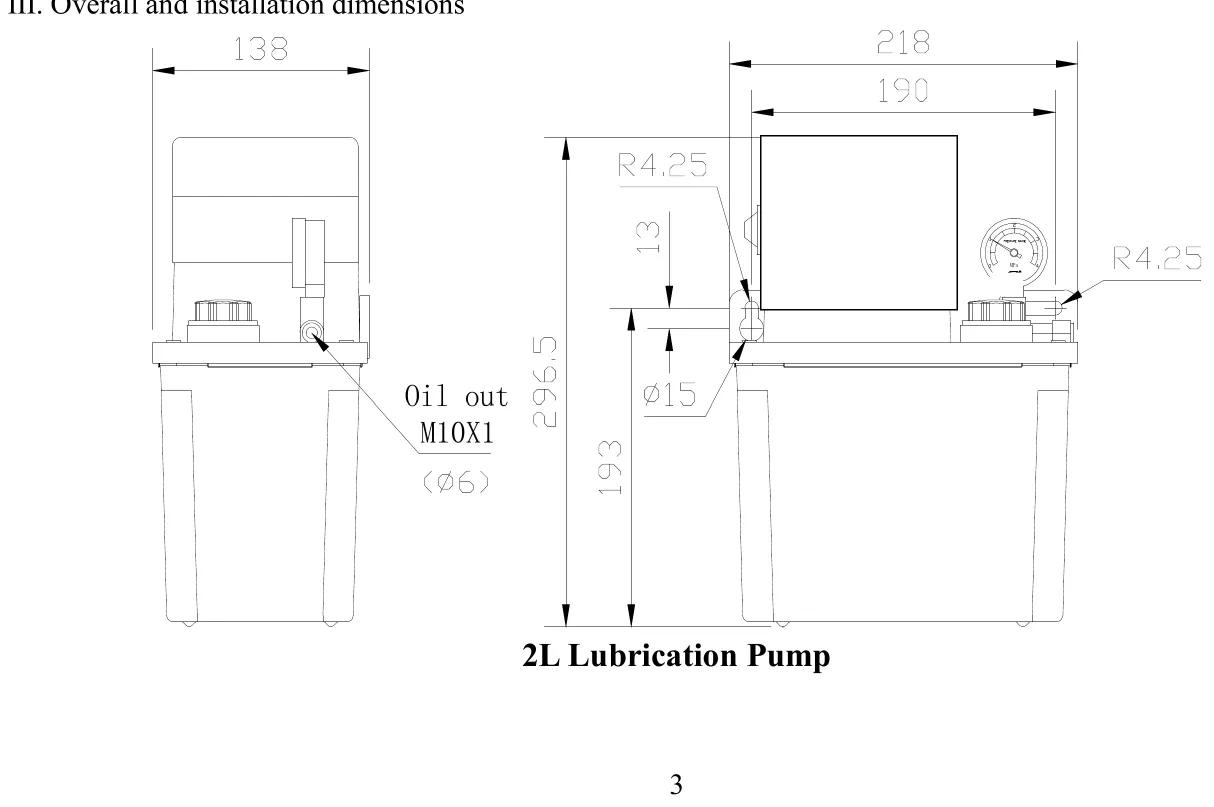

Dimensions

Dimensions in millimetres. Confirm critical dimensions with us before machining a mounting.

How to read the order code

TZ-2232-410XTZ type lubrication pump · 100–200 cc/min discharge · 2P motor · NK-3 digital display microcomputer · single-phase 220 V · 4 L oil reservoir · 10 kgf/cm² pressure switch action · built-in pressure take-off mechanism.

Discharge capacity per minute: 1 = 0–100 cc · 2 = 100–200 cc · 3 = 200–300 cc
Number of motor poles: 2 = 2P
Timer module: 0 = without dual-timer module · 1 = built-in dual-timer module · 3 = NK-3 dual-timer with digital display
Motor type: 1 = single-phase 100 V · 2 = single-phase 220 V · 3 = three-phase 200 V · 4 = three-phase 380 V
Reservoir volume: 2 = 2 L · 4 = 4 L
Pressure switch action pressure: 00 = without pressure switch · 05 = 5 kgf/cm² · 10 = 10 kgf/cm²
Pressure take-off mechanism: X = built-in, for dosing distributors · T = without, for resist-type
Suffixes: A = motor (blank = induction motor) · B = with buzzer · D = level switch up is on (blank = down is on)

Before you order

State voltage, reservoir size and take-off requirement on the order. None of the three is a field-change.
A pump ordered T (without take-off) will not cycle a volumetric distributor. Points will be starved with no visible fault.
Metal reservoirs are custom-made. Specify at time of order.
TZ-2211, TZ-3211, TZ-2231 and TZ-3231 (the 100 V single-phase timer and digital display codes) are made to order and not held in stock. MOQ and lead time are confirmed at quotation.

Warranty

One year against manufacturing defect from date of invoice.

How it pairs

The TZ Type Oil Lubrication Pump is commonly specified alongside the RH3 Type Volumetric Distributor, the 34 Type Volumetric Distributor, the 35 Type Volumetric Distributor, and the TCJ/TCZ Resist Type Distributor. That is the same recommendation carried on its own datasheet, not a generic same-category suggestion.

Used on

CNC machine toolsPlastic injection moulding machinesSpinning and weaving machinesPrinting machinesChemical processing equipmentWoodworking machineryFood processing machineryEscalators and conveyorsLight industrial equipment

Industry applications

CNC Machining

Ways, ball screws and LM guides on machining centres, turning centres and routers: metered oil to every point, and a wireless handwheel for the setter.

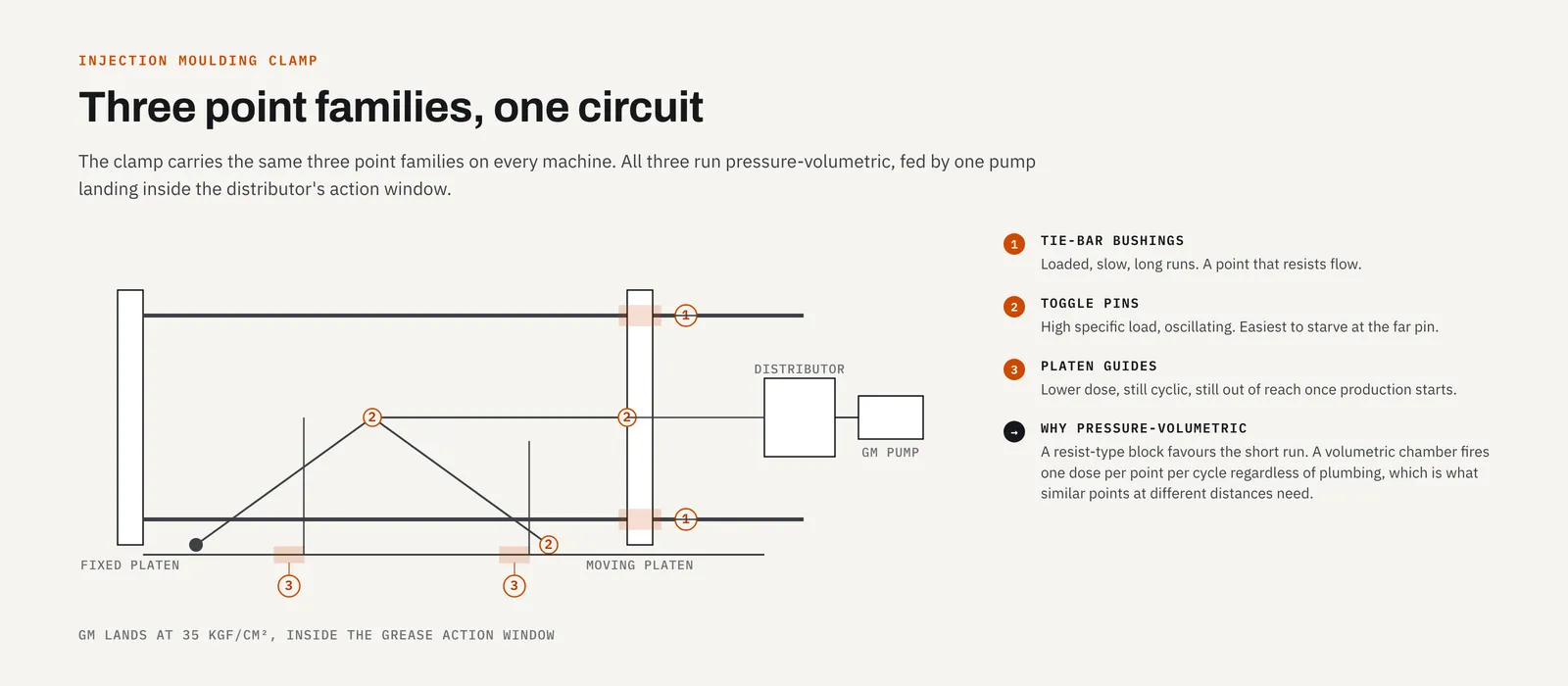

Injection Moulding

Tie bars, toggle pins and platens on horizontal and vertical machines: oil or semi-fluid grease, metered per point and re-metered every cycle.

Escalators & Conveyors

Step chains, sprockets and rollers on continuous-duty runs: oil proportioned to every point while the machine runs, so nobody has to reach into the truss.

Compatible with

35 Type volumetric distributorsRH3 Type inspecting volume distributorsTCJ / TCZ resist-type distributors
