34 Type Volumetric Distributor

Name: 34 Type Volumetric Distributor
Brand: AMAG CNC Technology

Also sold as the 34 Type Pressure Volume Type Distributor

Pick the code on your nameplate

342XX343XX344XX345XX

2-outlet configuration

WhatsApp for a pricequoting 342XX Datasheet PDF ↓Photo of the nameplate is enough; send it with the chat.No part in hand? Tell us the machine, the number of lube points and the interval instead and we will name it.

The 34 Type Volumetric Distributor is a compact pressure-type volumetric distributor for precise, metered lubricant delivery in centralised lubrication systems. Built with 2, 3, 4 or 5 outlets, each dispensing a fixed, measured volume per cycle. Suited to small CNC machines and light-duty equipment needing reliable multi-point lubrication from a single pump.

How it works

The block injects oil out when system pressure increases and refills when system pressure decreases, which makes it a volume type cycle lubrication component rather than a spring-return one. The dose reaches the point at line pressure.

Dose is set per outlet at manufacture. Suitable where points resist flow but the required volume is small.

Specifications

Available Outlets2 / 3 / 4 / 5

Discharge Capacity0.03 – 0.16 ml/time (per outlet)

Action Guarantee Pressure (Oil)8 – 12 kgf/cm²

Lubricant TypeOil

System TypeVolumetric cycle lubrication

DesignCompact modular

Model matrix by order code

CodeConfiguration

342XX2-outlet configuration

343XX3-outlet configuration

344XX4-outlet configuration

345XX5-outlet configuration

Dimensions

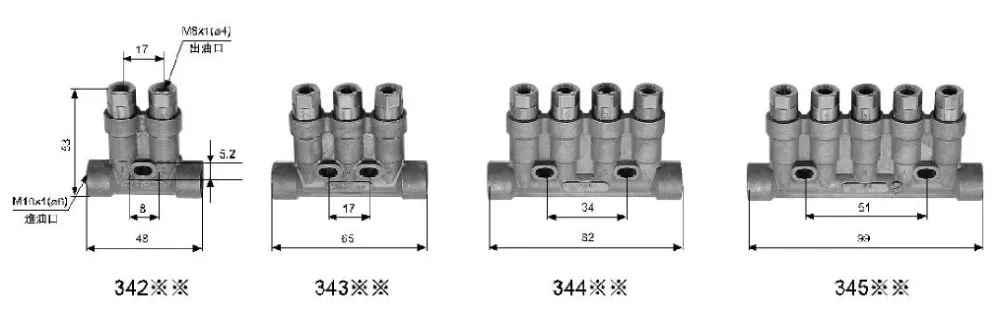

Dimensions in millimetres. Confirm critical dimensions with us before machining a mounting.

How to read the order code

3451034 type, five outlets, 0.1 ml per cycle at every outlet. Leaving positions 4 to 7 blank is what makes every outlet the same, the build we stock.

Series: 34
Number of outlets: 2 · 3 · 4 · 5
Discharge capacity, 1st outlet: 03 = 0.03 ml · 06 = 0.06 · 10 = 0.1 · 16 = 0.16 ml/time
Discharge capacity, 2nd outlet: Blank = same capacity as the 1st outlet
Discharge capacity, 3rd outlet: Blank = 2-outlet block, or all outlets the same
Discharge capacity, 4th outlet: Blank = 2- or 3-outlet block, or all outlets the same
Discharge capacity, 5th outlet: Blank = 2-, 3- or 4-outlet block, or all outlets the same

Before you order

We stock blocks with the same discharge capacity at every outlet. A block with a different dose per outlet is a special order: ask before quoting one.
Maximum dose is 0.16 ml per outlet. Where a point needs more, specify a 35 type.
Oil only. For grease use the 35 type or the RH-3 G / GH build.

Warranty

One year against manufacturing defect from date of invoice.

How it pairs

The 34 Type Volumetric Distributor is commonly specified alongside the TZ Type Oil Lubrication Pump and the HL Type Oil Lubrication Pump. That is the same recommendation carried on its own datasheet, not a generic same-category suggestion.
