Fittings & Tubing
The plumbing between the pump and the point on centralised oil and grease circuits: brass compression fittings, manifolds and blanking plugs, with made-to-length hose sets to run them. PA, PB and PT branch fittings serve Ø4 and Ø6 tube, PL elbows take off at 90° where the tube cannot be bent to the point, PD in-line unions include the PD35612 / PD35812 adapters the 35 type block needs, and 3T / 4T brass manifolds split a main line at M10×1. Thread sizes are stated on every part, so order tube and fittings together.
What the range covers
Oil · Grease
PA / PB / PT (Ø6)
PA6 · PB6 · PT6
Straight, banjo and tee branch fittings for Ø6 tube.
Oil · Grease
PA / PB / PT (Ø4)
PA4 · PB4 · PT4
Same family for Ø4 branch lines.
Oil · Grease
PL elbow fittings
PL series
90° take-off where the tube cannot be bent to the point.
Oil · Grease
PN fittings
PN series
Nozzle-end fittings for open points and drip feeds.
Oil · Grease
Hose connectors
6 mm
Tube-to-hose transition, brass body, M10×1.
Oil
Blanking dummies
PS-08Z · PS-10Z
8 mm and 10 mm plugs for unused distributor outlets. Never leave an outlet open.
Oil · Grease
PD straight connector
PD series
In-line union, including the PD35612 / PD35812 adapters the 35 type block needs.
Oil · Grease

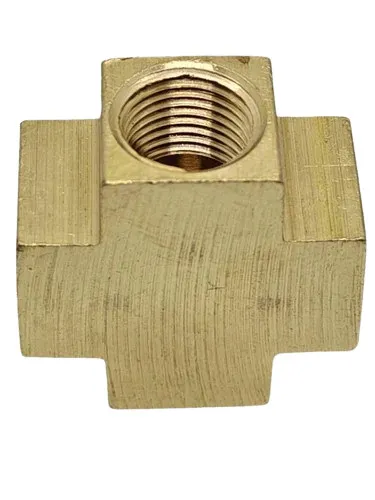

3T / 4T manifold fittings
3T-10-10 · 4T10-10
Three- and four-way brass blocks, M10×1 throughout.
Oil · Grease

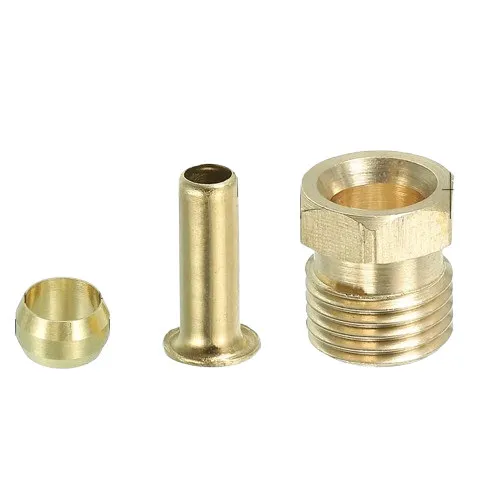

Sleeves, nuts and bushes
Assorted
Compression parts to match every tube size in this catalogue.
Oil

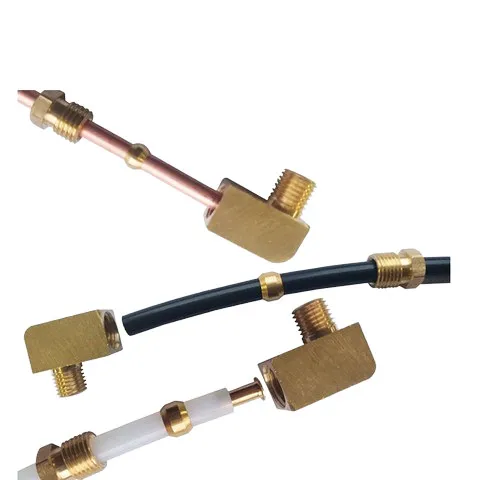

Assembled hose sets
Made to length
Tube, fittings and nozzle assembled and pressure-tested to your dimension.
Oil

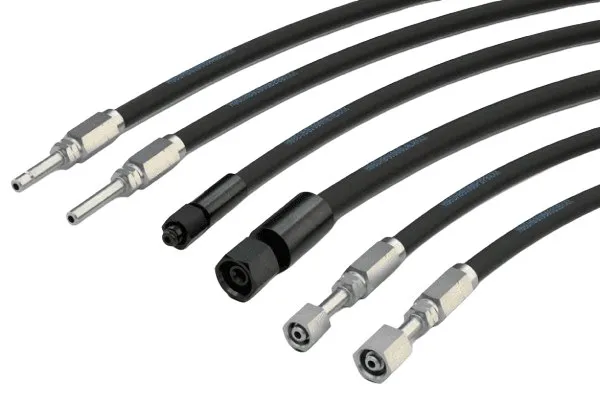

High pressure hoses
Assorted lengths
For grease circuits and for pump-to-distributor runs above 40 kgf/cm².
Oil

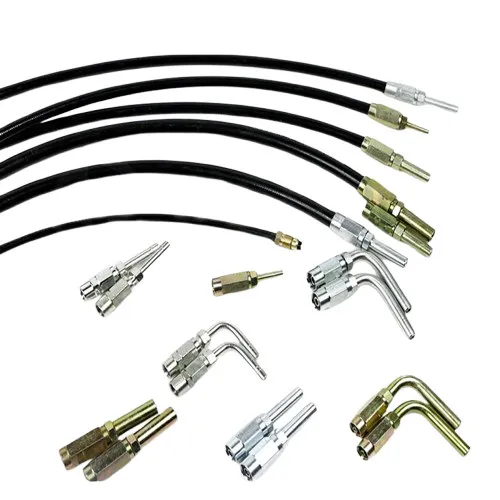

Grease coupler sets
Assorted
Couplers, elbows and extensions for manual top-up points.
Grease
Brass tee block
Assorted
Heavy brass tee for main-line branching at pressure.
Grease

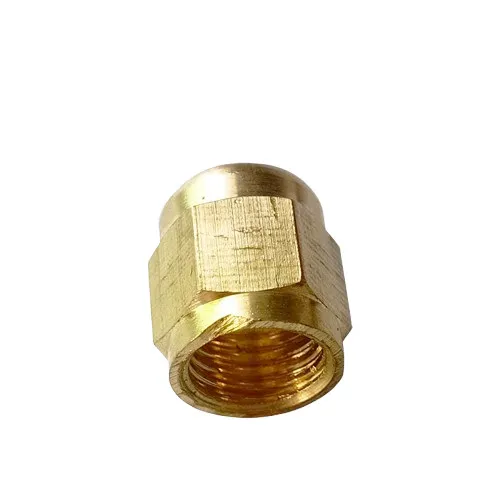

Union nuts
Assorted
Replacement nuts and ferrules for field re-termination.
Grease
Tee fitting, large bore
Assorted
For Ø8 main lines on progressive circuits.
Drawings, sizes and the full grids are in the printed catalogues: Oil Lubrication Catalogue (PDF) · Grease Lubrication Catalogue (PDF)
Specifications
Model matrix by order code
Used on
Cross-reference
Running one of these brands instead? This family covers the same duty as their systems. Send the nameplate code and a photo and we'll confirm the match.
